Muffle Furnace Operation Process and Precautions

What is a muffle furnace?

Muffle furnace is a general heat treatment equipment, that can be used for element analysis and determination pretreatment and quenching, annealing, tempering, and other heat treatment. High-temperature muffle furnaces can also be used for sintering of metals, ceramics, and other materials. It is a commonly used heat treatment equipment in the laboratory.

The operating temperature ranges from 500℃-1800℃.

Operation Process of Muffle Furnace

Step 1: Open the door of the muffle furnace and put in the sample to be calcined.

Step 2: Close the door and turn on the power.

Step 3: Set the heating program.

Step 4: Start heating.

Step 5: After use, turn off the power.

Step 6: After the temperature cools down to room temperature, open the door and take out the sample.

Step 7: Clean the muffle furnace’s chamber.

Precautions for Using Muffle Furnace

• (1) Place the muffle furnace on a solid, stable, non-conductive platform, ensuring the surrounding area is free of conductive dust, explosive gases, and corrosive gases that could severely damage metal and insulation. The relative humidity of the environment should not exceed 85%.
• (2) Before use, check that all connections to the muffle furnace are secure and in good contact.
• (3) When using the muffle furnace for the first time or after a long period of inactivity, it must be preheated to avoid cracking the chamber. Follow the preheating procedure as per the manual.
• (4) Insert the sample into the furnace chamber before switching on the power.
• (5) Do not exceed the maximum rated temperature during use to avoid damaging the heating elements.
• (6) Do not pour any liquids or easily melted metals into the furnace. Metals and their minerals must be heated in porcelain containers, not placed directly in the chamber.
• (7) For longer element life, operate the muffle furnace at temperatures at least 50°C below the maximum.
• (8) Do not remove the thermocouple abruptly at high temperatures to prevent the sheath from cracking.
• (9) When cooling the furnace, open the door slightly to a narrow gap, not fully open.
• (10) Use heat-resistant gloves and crucible tongs when removing crucibles from the furnace.
• (11) Keep the furnace chamber clean by promptly removing any debris and residual samples.

Summary

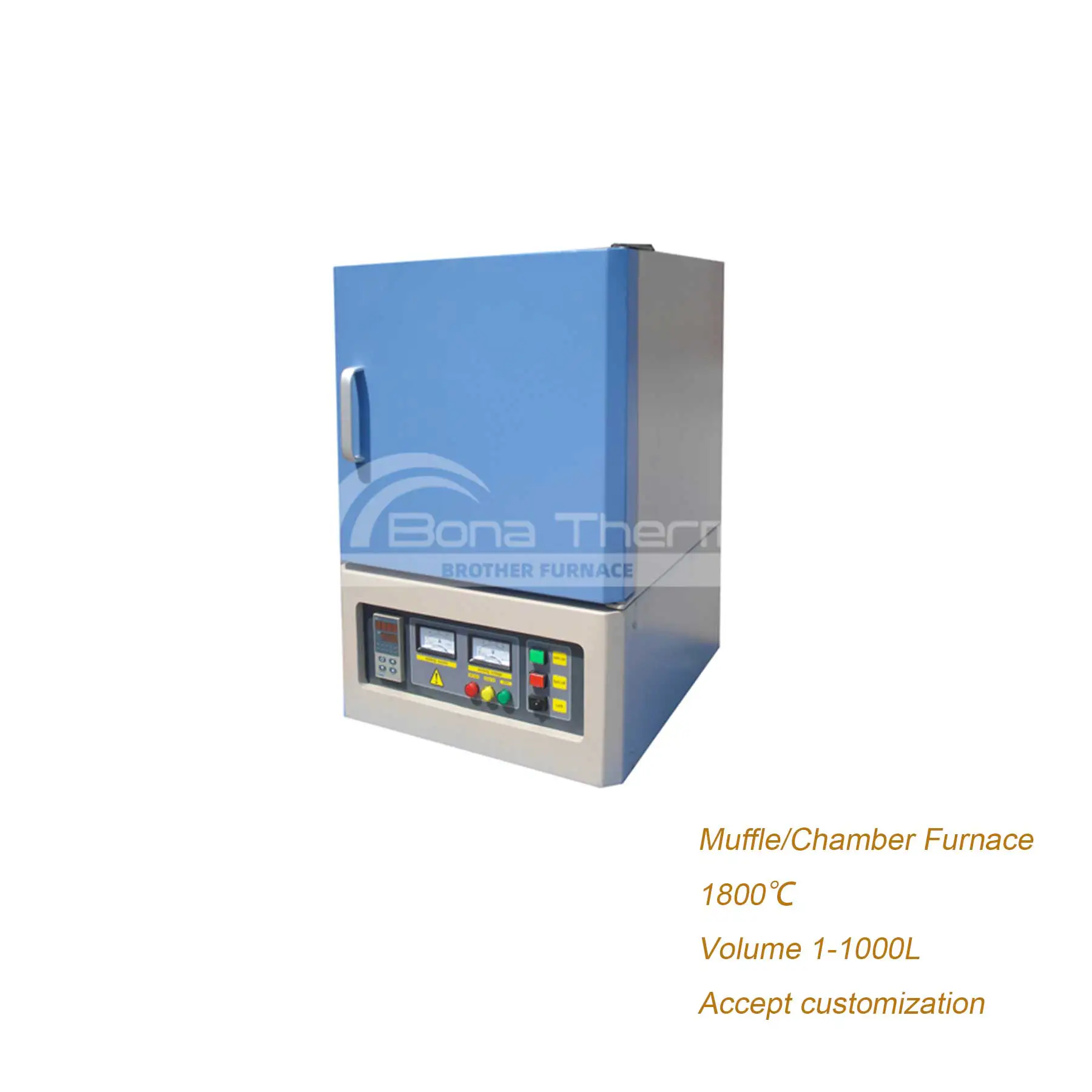

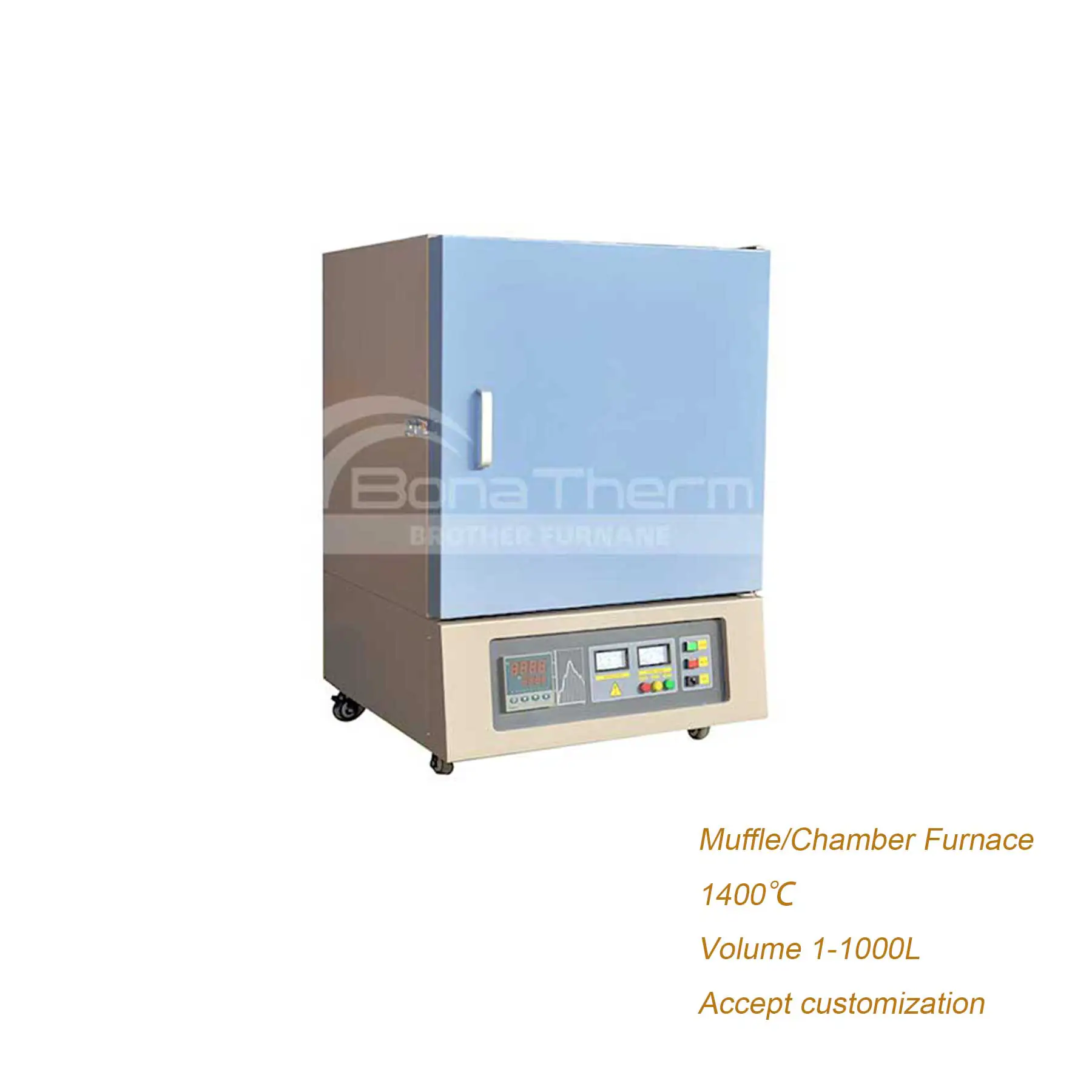

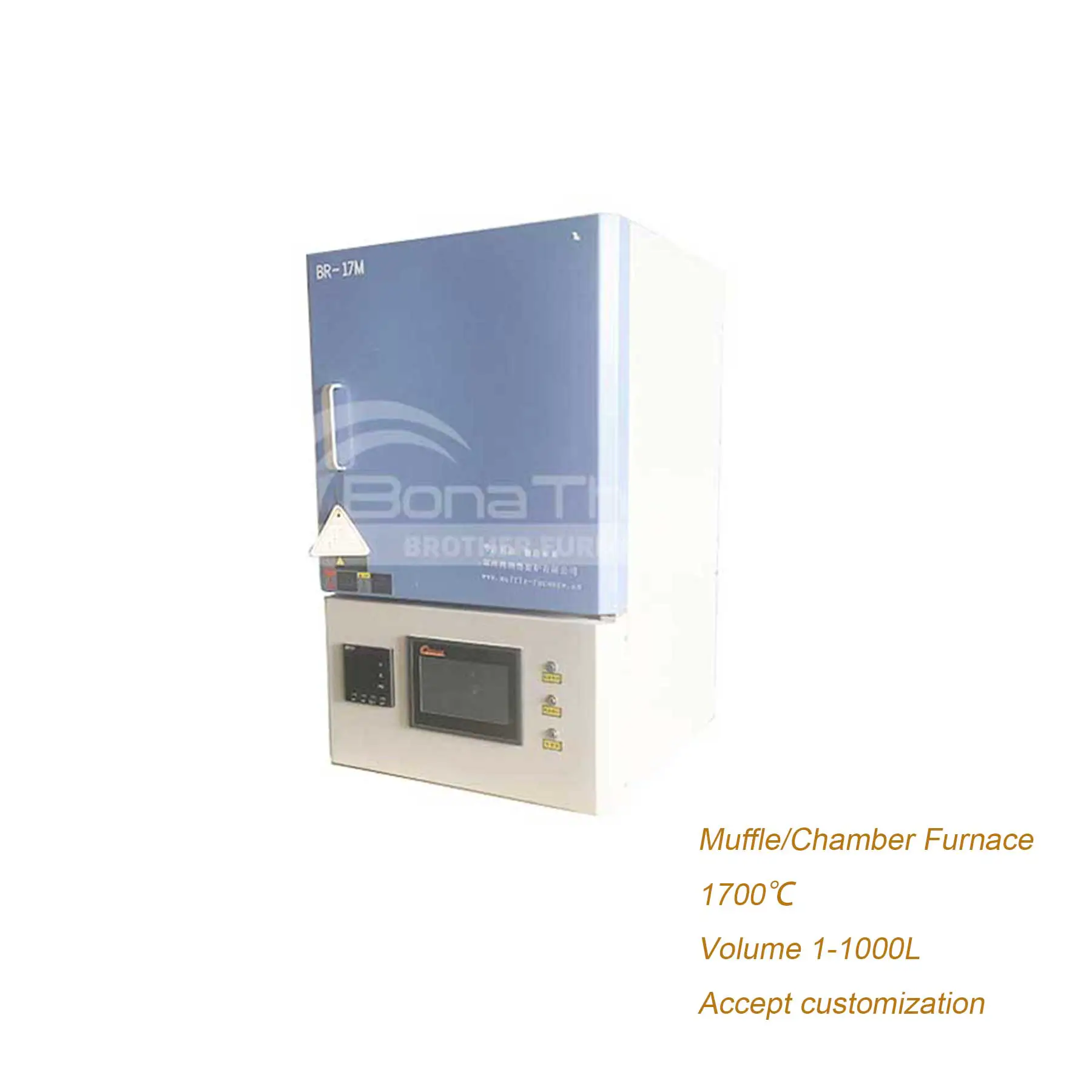

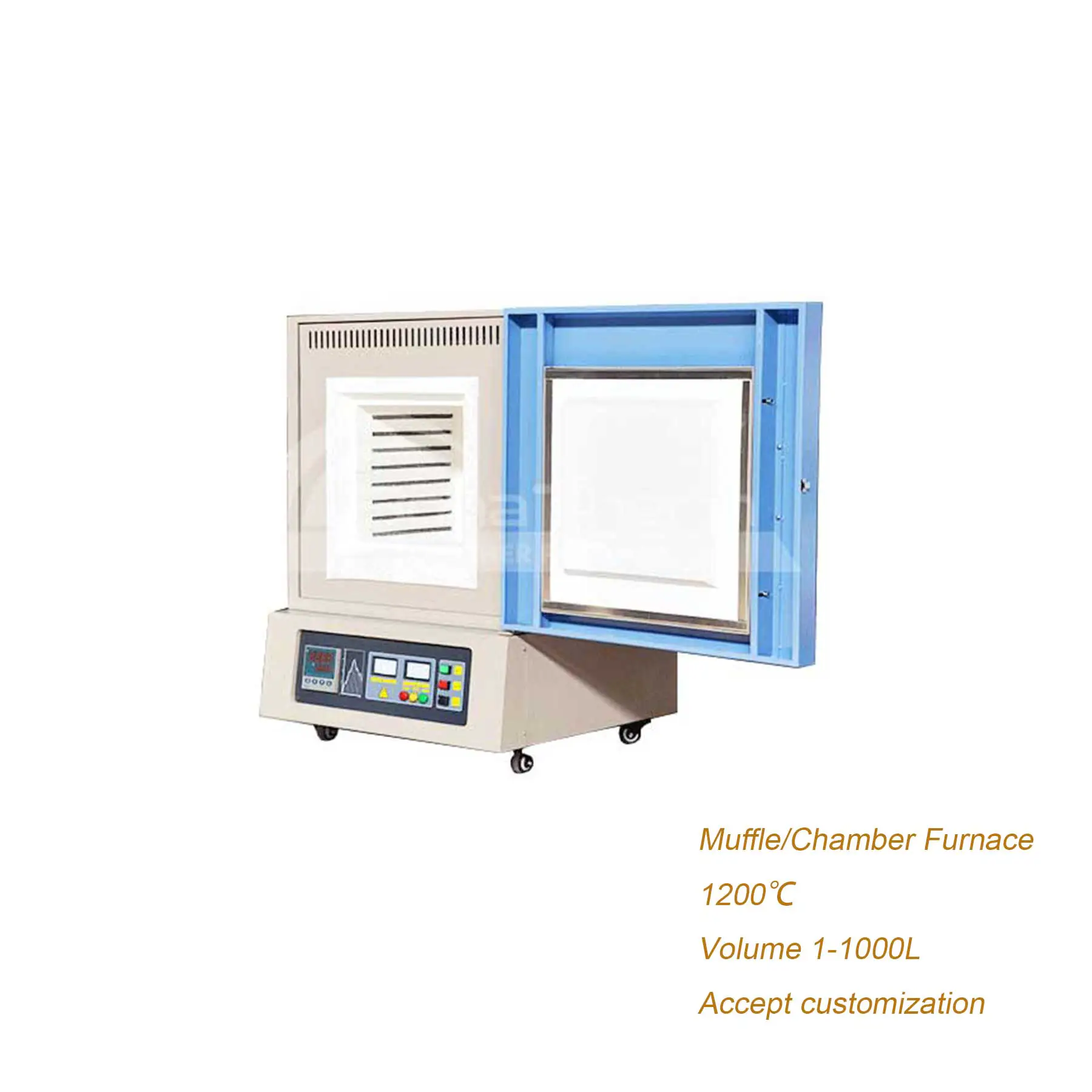

Are you looking for a high-quality muffle furnace? Please don't miss Brother Furnace. Brother Furnace is a laboratory furnace manufacturer with 20 years of experience. The muffle furnaces we provide are often used in laboratories and universities. The perfect pre-sales and after-sales service makes our muffle furnaces well-received. Learn more about 1200℃ muffle furnaces, 1400℃ muffle furnaces, 1700℃ muffle furnaces, and 1800℃ muffle furnaces.
