Introduction

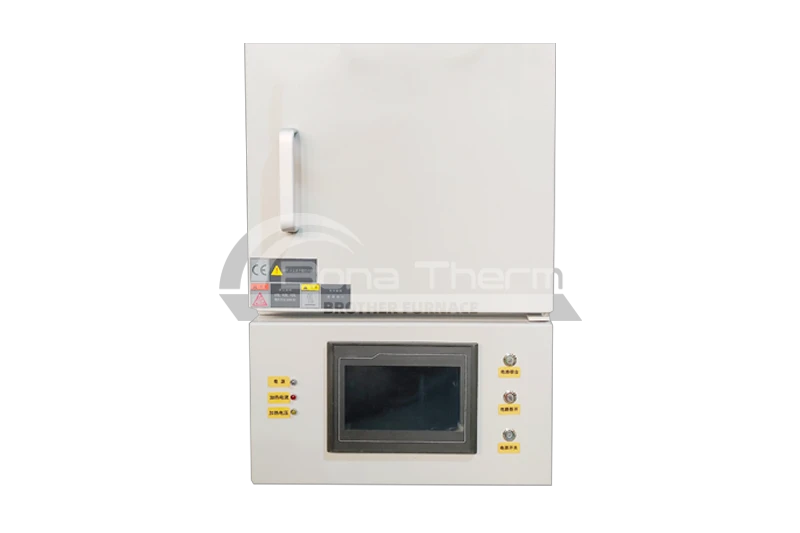

T-crystal sintering furnace uses high-purity polycrystalline mullite fiber as the furnace material. It is light in weight, compact in size, and has a power of only 1.5 kW. It is suitable for use in small laboratories and even home-style working environments. It has been widely used in dental laboratories for zirconia sintering and laboratories for small-batch sintering.
Features
● T-Crystal is specially designed for the sintering of small batch samples of zirconia denture crystal, structural ceramics and polymer ceramics.
● The rated power is only 1kW, which is suitable for any small lab.
● High-speed temperature increasing, 0-40℃/min.
● 7-inch HD touch screen, Easy to operate, Can store 30 different processes, and programs.
Application
Sintering Zirconia
Dental furnaces are often used for the sintering of zirconia crowns and bridges. Zirconia is a popular material in dentistry due to its strength and esthetic properties.
Porcelain Firing
Dental porcelain is used to create dental crowns, veneers, and other restorations. Dental furnaces can be used for the firing process to achieve the desired color and surface characteristics.
Metal Ceramics
Some dental restorations involve metal ceramics, where a metal framework is covered with a ceramic layer. Furnaces are used for the firing process to bond the ceramic to the metal.
Optional Spares
Special sintering plate, observation hole, easy to observe the heating in the furnace
Technical Parameters
Chamber size | 100*100*100mm (W*H*D) |
Max temperature | 1700℃ (<2 hour) |
Working temperature | 1600℃ |
Temperature control | 50 segments programmable and auto-control |
Thermocouple | B Type |
Temperature accuracy | +/-1 ℃ |
Power | 1kW |
Net Weight | 58kgs |
Shape size | 410x380x610mm |
