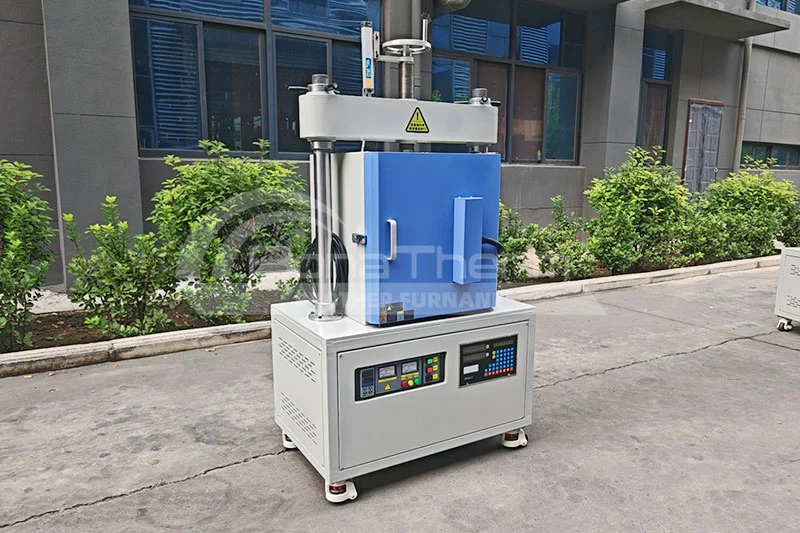

Atmosphere Hot Press Furnace

Introduction

The vacuum hot press furnace is a device that combines atmosphere/oxidation environment, hot press molding, and high-temperature sintering. It is suitable for high-temperature thermoforming of new materials such as powder metallurgy and functional ceramics. It is used for vacuum sintering of transparent ceramics, industrial ceramics, and other metals and alloy materials composed of difficult-to-accommodate metals, as well as high-temperature sintering of ceramic materials silicon carbide and silicon nitride. It can also be used for powders and compacts at temperatures lower than the melting point of the main components. The purpose of heat treatment is to improve its strength through metallurgical bonding between particles.

Applications

This equipment is widely used in colleges and universities, scientific research units, and production enterprises to perform hot-pressing sintering of materials under vacuum, protective atmosphere conditions, or air (the indenter and mold need to be replaced with corundum). Vertical structure, suitable for annealing, brazing, sintering, and degassing of materials under vacuum, inert atmosphere, and high-temperature conditions. It is an ideal equipment for materials laboratory.

Features

● Atmosphere customization:

Integrate advanced atmosphere control technology to support the customization of multiple atmospheres, including nitrogen, hydrogen, etc., to meet different material processing needs.

● High temperature and high-pressure operation:

Provides a reliable high-temperature and high-pressure operating environment, making it suitable for heat treatment and hot-pressing preparation of various materials.

● Intelligent automation:

Equipped with an intelligent automatic control system, it can achieve precise control of parameters such as temperature, pressure, and time, and achieve highly automated production.

● Versatility:

Versatility, suitable for the preparation process of metals, ceramics, powder metallurgy, and other materials.

● Efficient molding:

Through the action of high temperature and high pressure, molded products with high density, good uniformity, and high strength can be produced.

Technical Parameters
